Professional Cold Glue Application System for Corrugated Board Manufacturing

Type : Gluing Machine

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other

Showroom Location : Malaysia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 2 years

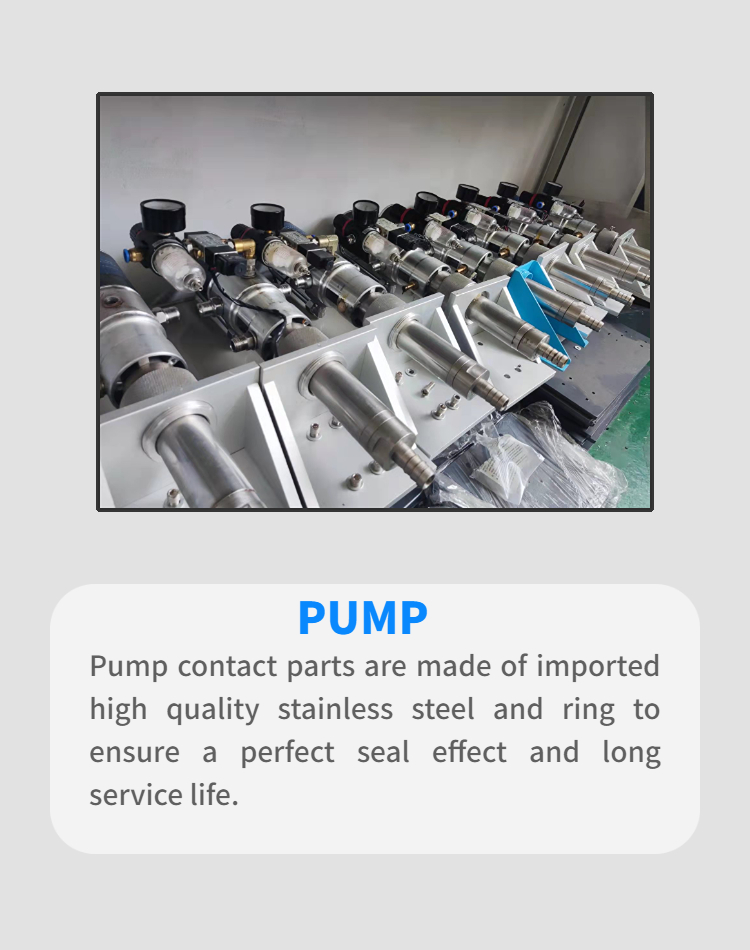

Core Components : PLC, Pump

Condition : New

Application : Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Folder gluer, Medical

Packaging Type : case

Packaging Material : Wood

Automatic Grade : Automatic

Driven Type : Pneumatic

Voltage : 220V

Place of Origin : Guangdong, China

Brand Name : 3A

Dimension(L*W*H) : 55*55*150cm

Weight : 125 KG

Warranty : 2 years

Key Selling Points : Long Service Life

Product name : Gluing Machine

Function : Cold Glue System For Point Or Line Spray

Glue type : Cold glue

Maximum working frequency : 500 points/sec

Maximum speed : 300m/min

Spray precision : ±1mm(speed within 100m/min)

Pressure input : 2-8Bar

Number of gun : 2 (optional 4)

The electric quantity : 2 (optional 4)

Marketing Type : Ordinary Product

Packaging Details : Plywood packaging sturdy

Port : HuangPu

Supply Ability : 2000 Set/Sets per Month

Price : $3,900.00/sets >=1 sets

MOQ : 1 set

Contact Now

Product Description

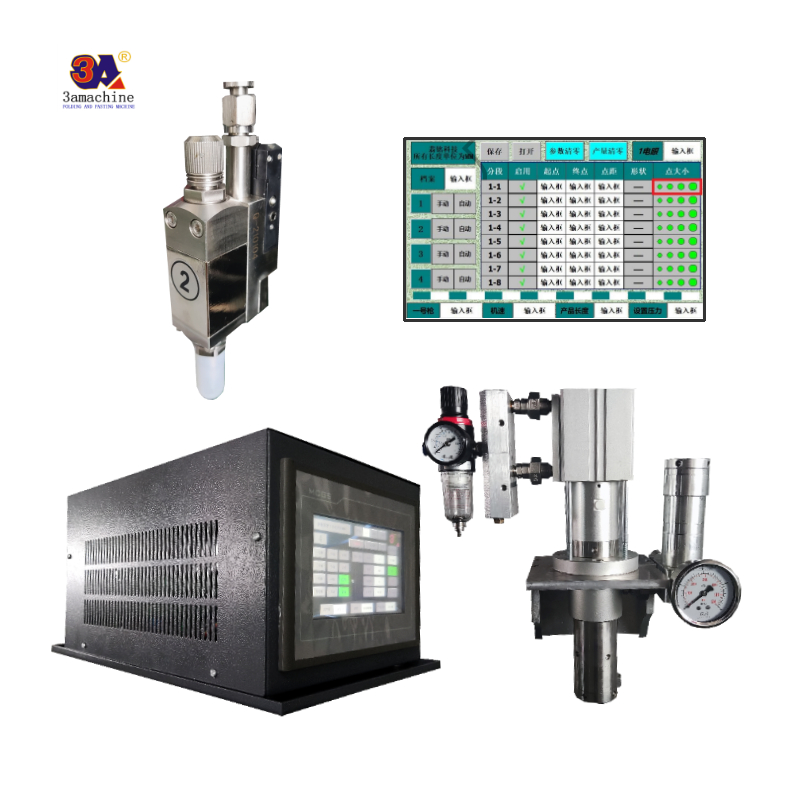

3A brand---Folding Carton Spray Gluing System

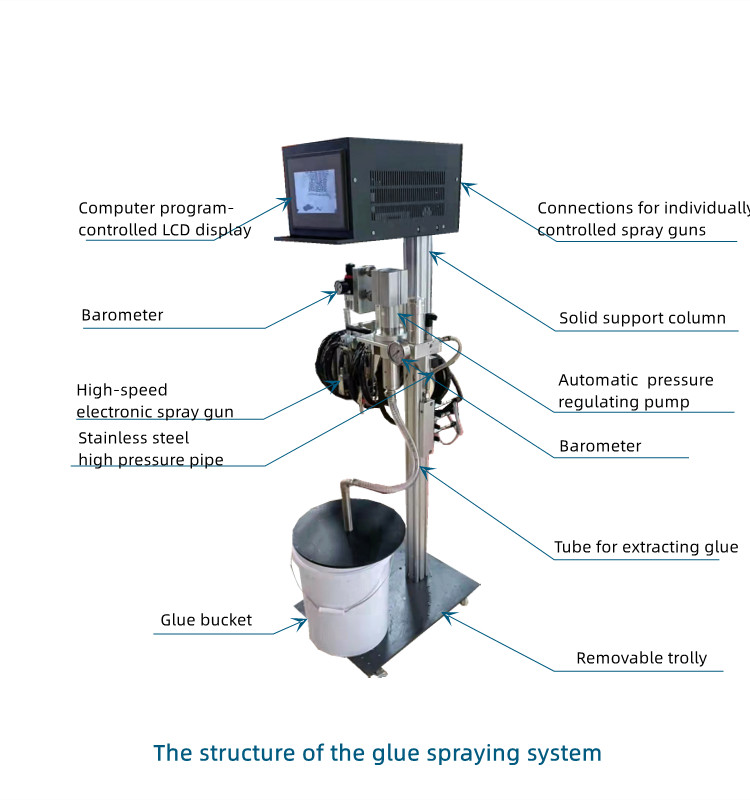

It is a glue spray program control system equipped with a folder gluer. It can be flexibly installed on the folder gluer according to the individual requirements of the product, breaking through the structure and function of the original folder gluer, realizing precise dispensing and producing more types of boxes. The machine uses cold glue glue. The machine runs at high speed, sprays accurately, can be independently adjusted, operates cleanly, and saves glue. Simple and Convenient to Operate.

Professional Cold Glue Application System for Corrugated Board Manufacturing

Detail features

Performance Characte

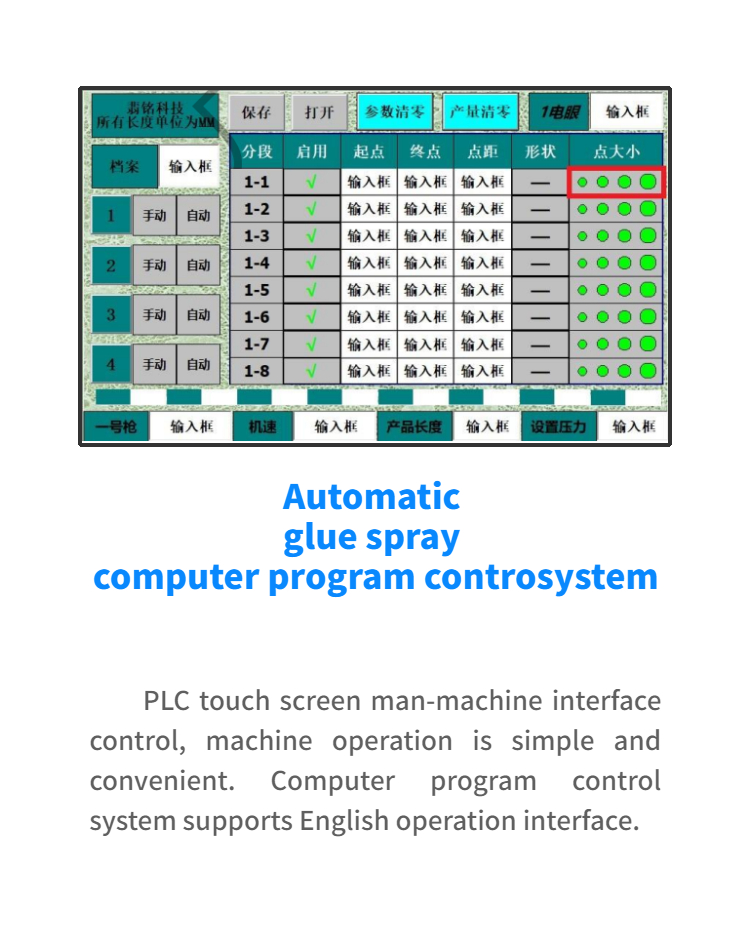

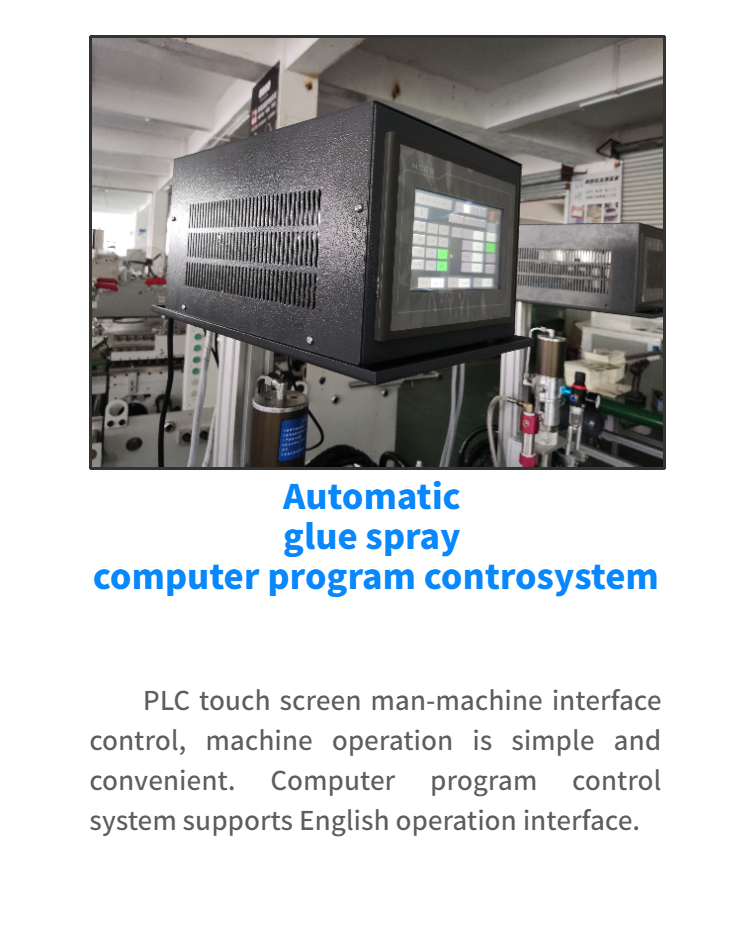

The glue position, length, distance can be precisely set by the controller to ensure the quality.

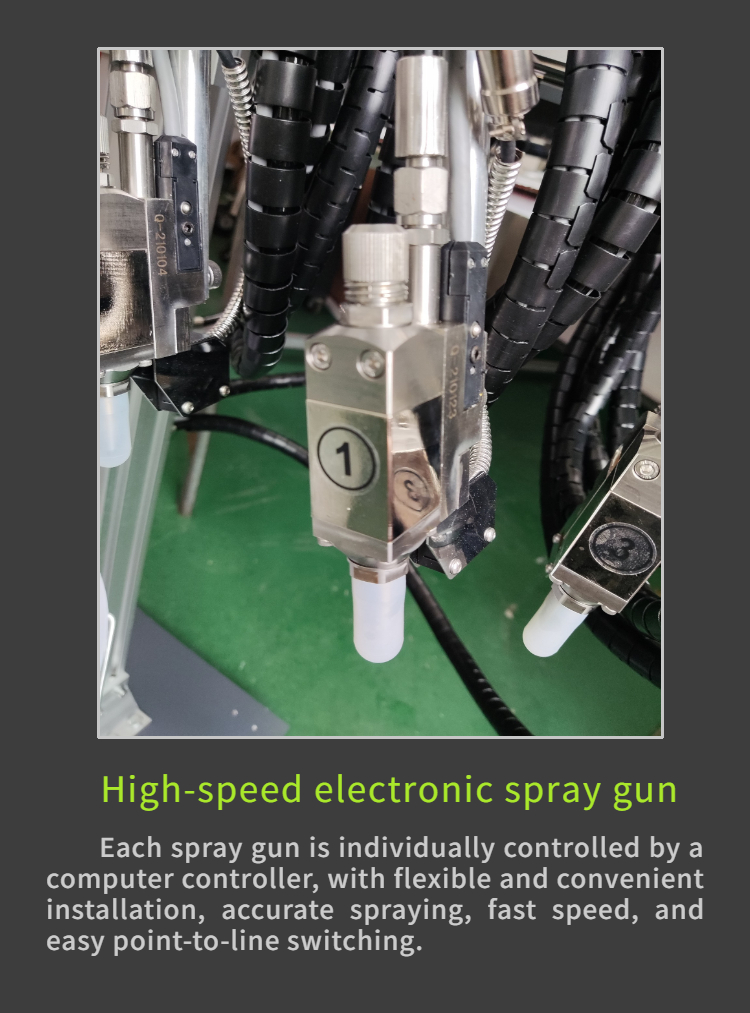

Each spray gun can be individually adjust .

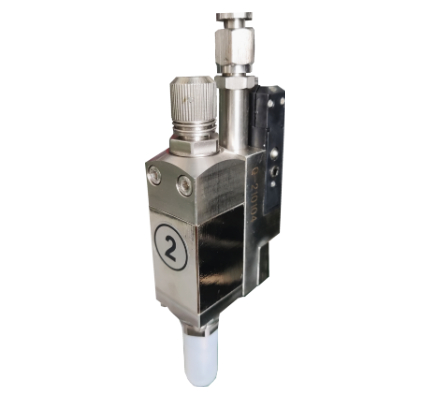

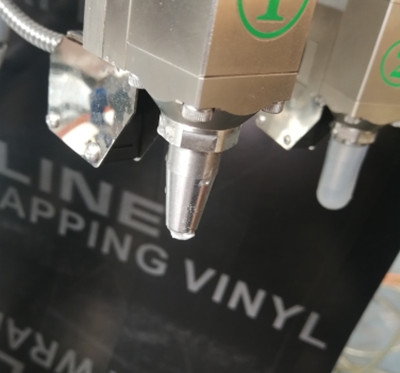

Super fast and no abrasion non-contact cold glue spray gun, completes precise cold glue dot and line spray gluing.

Reduce the consumption of glue, reduce the cost.

Professional Cold Glue Application System for Corrugated Board Manufacturing

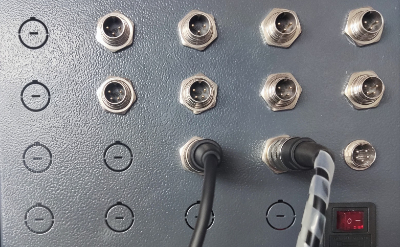

glue pipe joints

Professional Cold Glue Application System for Corrugated Board Manufacturing

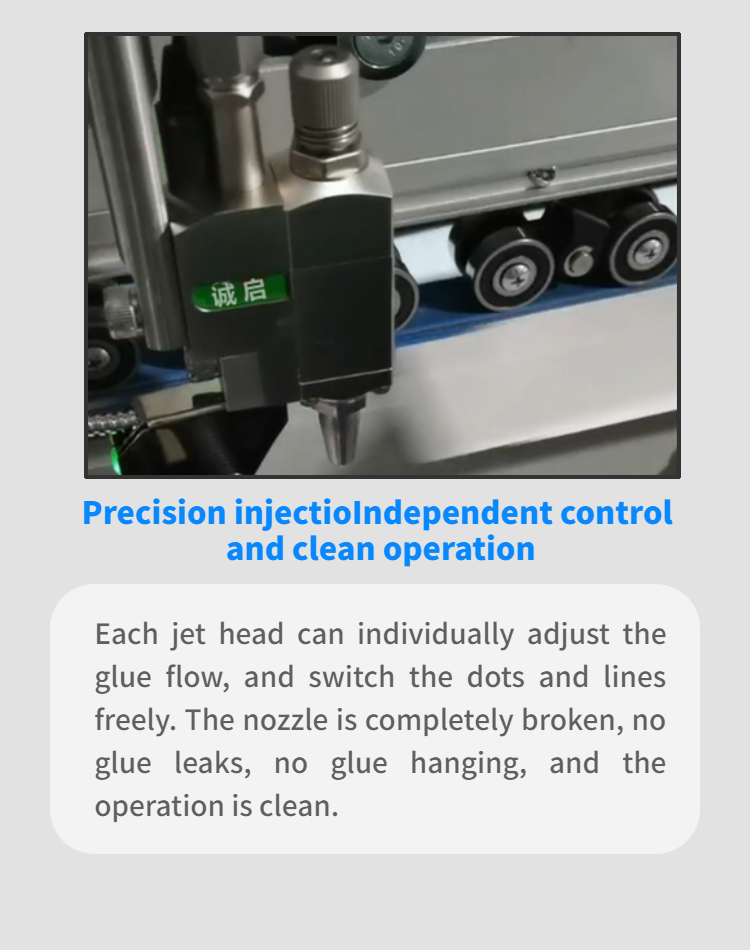

Independent control of each gun

PRODUCT SPECIFICATIONS

Professional Cold Glue Application System for Corrugated Board Manufacturing

Maximum working frequency	500 points/sec
Maximum speed	300m/min
Spray precision	±1mm speed within 100m/min
Pressure input	2-8Bar
Number of gun	2 (optional 4)
The electric quantity	2 (optional 4)
Glue	Cold glue
Voltage	AC220V 50-60HZ

Professional Cold Glue Application System for Corrugated Board Manufacturing

Successful Project

Professional Cold Glue Application System for Corrugated Board Manufacturing

Easy to switch between dots and lines spray glue clean

Professional Cold Glue Application System for Corrugated Board Manufacturing

Company Information

We have been engaged in printing and packaging machinery for 32 years.We are a professional manufacturer of Folding Gluing Machine,Gluedispenser , Paper cutter computer programming system.. We also jointly sell All kinds of post-press packaging machinery.

Professional Cold Glue Application System for Corrugated Board Manufacturing

Our Services

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2020,sell to Southeast Asia(56.00%),South America(10.00%),Africa(10.00%),South
Asia(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Central America(3.00%),Western Europe(1.00%). There are total about 51-100 people
in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Folder gluer,Gluer dispensing system,folding and pasting machine,Glue dispenser,glue machine

4. Why should you buy from us not from other suppliers?
We have been engaged in printing and packaging machinery for 32 years.We are a professional manufacturer of Folding Gluing
Machine,Gluedispenser , Paper cutter computer programming system.. We also jointly sell All kinds of post-press packaging
machinery.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;
Language Spoken:English,Chinese
